Applications: Touring Performance Theatre and Multi-Function Hall Church Features: Designed for small to medium-sized venues, the LA210P is a full-range line array speaker. Offers presettable angle adjustability both on the ground and in the air with a manual hoister. Compact enclosure with high Sound Pressure Level (SPL) and excellent volume ratio. Physical Data: Dimensions (HxWxD): 303.4 x 730 x 464.5mm Weight: 37 kg / 82 lbs Connectors: 2 x NL4 connectors Speaker Cables: 1+1- for Full range, 2+2- for Not Connected (N/C) Materials: 15mm and 18mm Baltic birch plywood Finish: Black Polyurea paintings Grille: Black epoxy mesh grille with acoustically reticulated cloth Rigging: Adjustable in 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 degree increments Technical Specifications: Frequency Response: 50 Hz - 16 kHz (±3 dB), 40 Hz - 18 kHz (-10 dB) Nominal Coverage (-6 dB): 100° Horizontal (H) Channel Gain: CH1 (Low) 26 dB, CH2 (Hi) 20 dB Peak Power: 8 x 500W @ 4Ω + DSP Input Impedance: 18 kΩ balanced / 9 kΩ unbalanced Total Harmonic Distortion + Noise (0.1W to 1/2 power): <0.05% Signal to Noise Ratio: >98 dB Common Mode Rejection Ratio: > 50 dB Voltage Requirement: 200-240VAC 50Hz Maximum SPL: HF 138 dB SPL peak, LF 131 dB SPL peak Drivers: LF 2x10" woofer (75mm voice coil), HF 1x3" compression driver

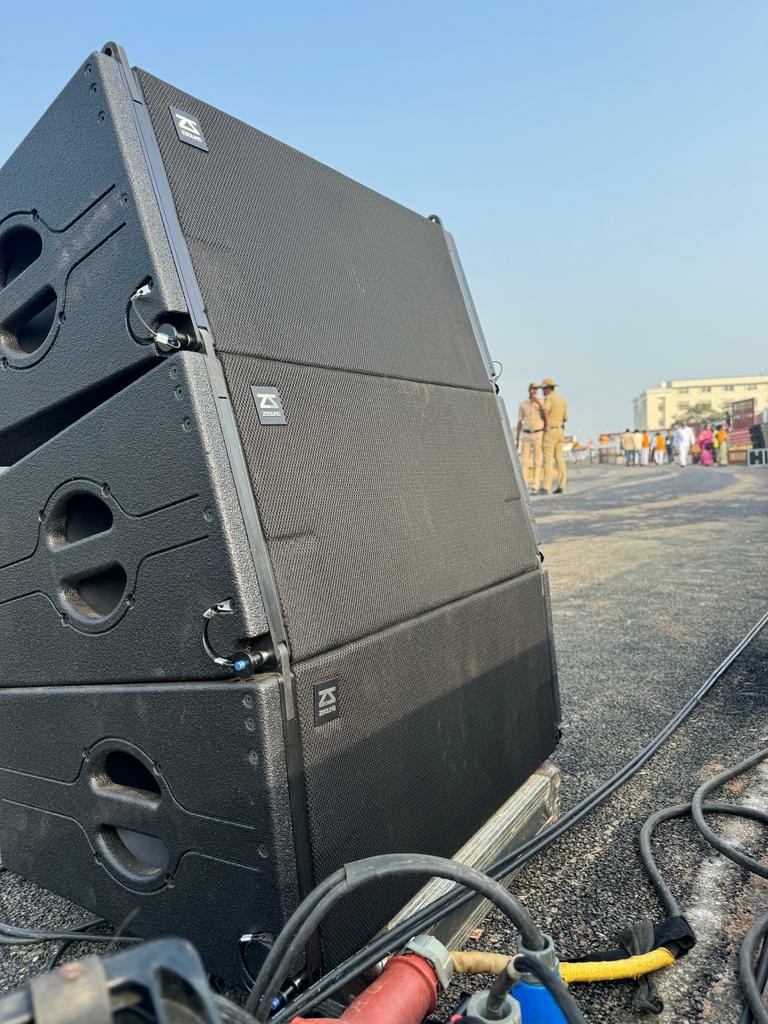

Discover the LA210P, a cutting-edge line array speaker system that sets new standards for small to medium-sized venues. Engineered with a built-in DSP for superior sound processing, the LA210P offers a dual-channel design that provides both flexibility and power. Its compact enclosure houses a high-efficiency sound system capable of delivering a powerful 138 dB SPL peak in the high-frequency range and a robust 131 dB SPL peak in the low-frequency range. Key Features and Selling Points: Built-in DSP: Enjoy pristine sound quality with the integrated digital signal processor that optimizes audio performance. Dual-Channel Capability: The LA210P's dual-channel configuration allows for versatile sound management, catering to complex audio needs. High SPL and Volume Ratio: With a compact design, the LA210P punches above its weight, delivering an impressive sound pressure level for its size. Adjustable Rigging: The speaker's rigging system offers 0 to 10-degree increments of adjustability, ensuring precise sound coverage for any venue layout. Durable Construction: Crafted from 15mm and 18mm Baltic birch plywood, the LA210P is built to withstand the rigors of touring and frequent setup. Versatile Applications: Perfect for touring performances, theaters, and churches, the LA210P is an all-rounder that enhances any audio setup. The LA210P is more than just a speaker system; it's a complete audio solution designed for professionals who demand the best. Contact us today to experience the difference that the LA210P can make at your next event.
